Precise milling with perfect T & G match, multi-layer UV cured lacquer modified with Aluminum Oxide or Ceramic for Anti-scratch and ultra high abrasion resistance. Wax natural cured finish and UV Oil are also available. Wide selection of wood species and colors stain. Our solid flooring provides added value to your decoration, your best choice of high end flooring.

Warranty Policy:
(Please visit Installation instruction and Warranty webpage for details):

25 years residential warranty
5 years light commercial warranty.

4 White Oak Color Stains and Exotic Species: click to get an enlarged image

3	White oak (stain), Old Fashioned

3	White oak (stain), Gunstock

3	White oak (stain), Rich Ruby

3	White oak (stain), Butterscotch

3	White oak (stain), Antique Brown

3	White oak (stain), Cinnamon

Merbau

Jatoba

Lapacho

4 Hardwood Solid Flooring Specs. Sheet: (click to view more details)

Wood species	grade	Dimension ( MM )
		length	width	thickness
White Oak	ABC	300-1500mm	130mm (5”)	18mm (3/4”)
	AB		90mm (3 1/2”)
			83mm (3 1/4”)
			57mm (2 1/4”)
Red Oak	AB	300-1500mm	57mm (2 1/4")	18mm (3/4")
Maple Birch	A	300-1000mm	90mm (3 1/2")	18mm (3/4")
	B
Ipe	A	300-900mm	123mm (5")	18mm (3/4")
			93mm (3 3/4")
			73mm (3 ")
Cumaru	A	300-900mm	123mm (5")	18mm (3/4")
			93mm (3 3/4")	18mm (3/4")
			73mm (3 ")	18mm (3/4")
Cabreuva	A	300-900mm	123mm (5")	18mm (3/4")
			93mm (3 3/4")
			73mm (3 ")

Wood species	grade	Dimension ( MM )
Wood species	grade	length	width	thickness
Jatoba	A	300-900mm	73mm (3")	18mm (3/4")
Acacia	ABC	300-900mm	120mm (5")	18mm (3/4")
Acacia	ABC	300-900mm	90mm (3 1/2")	18mm (3/4")
China Maple	AB	300-900mm	90mm (3 1/2")	18mm (3/4")
China Maple	AB	300-900mm	123mm (5 ")	18mm (3/4")
White Oak	AB	300-1200mm	57mm (2 1/4")	8mm (5/16")
Red Oak	AB	300-1200mm	57mm (2 1/4")	8mm (5/16")
Ipe	A	300-900mm	75mm (3")	8mm (5/16")
Cumaru	A	300-900mm	75mm (3")	8mm (5/16")
Cabreuva	A	300-900mm	75mm (3")	8mm (5/16")
Jatoba	A	300-900mm	75mm (3")	8mm (5/16")

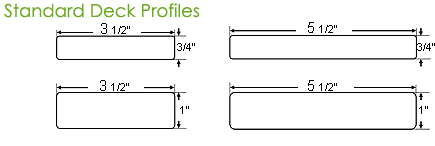

4 Decking: (click to view more details)

Anti-slip profiles available.
Garden tiles unfinished 50 cm x 50cm available.
Consult us for information about some exotic wood species available for use as decking.

IpeBrazilian Walnut (Tabebuia Spp)

One of most resistant wood of world.
Containing no harmful chemicals, Ipe can be used near water without potential contamination.
Very resistant to attack by fungi and termites.
Uses: residential and commercial decking, boardwalks, piers, fencing, trellis, park benches.

Marbau (Madagascar)

The yellowish-brown color timber has medium bending strength, stiffness and resistance to shock loads, and a high crushing strength.
Uses: General and heavy constructional work, flooring, panelling, high-class joinery, furniture making, agricultural implements, axe and tool handles, and when treated, for railway sleepers, etc.

4 White oak Flooring Grading Rules and specs.: (click to view more details)

Defect type	A grade (Select)	B grade (#1 common)	C grade (#2 common)
Smooth Tight Knots	max. dia. 3mm	max. dia. 10mm	max. dia. 30mm
Pin Knots	max. 1 per plank	max. 3 per plank	more allowed
Cracked Knots	not allowed	allowed	allowed
Smooth Tight Burls	unlimited	unlimited	unlimited
Worm Holes	not allowed	2pcs of 1mm hole allowed	2pcs of 1mm hole allowed
Sap	not allowed	a few allowed	allowed
Dead Knots	not allowed	max. dia. 5mm	allowed
Blue stain	not allowed	not allowed	a few
Heart	not allowed	not allowed	not allowed
Mineral	a few	a few	allowed
